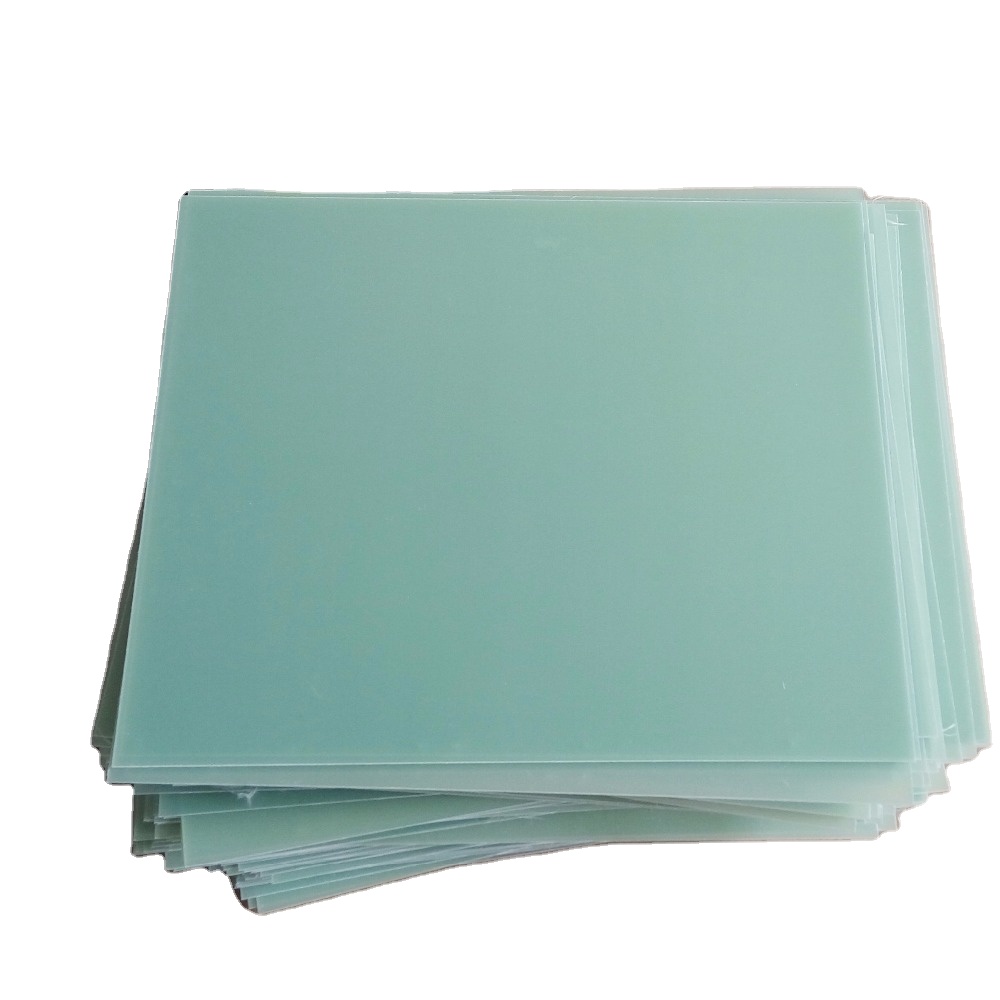

EPOXY (Fibered Glass)
G1O-FR4-G11 SHEETS

These products are products with very old usage, (specific weight: 1,90g/cm3), it contains values ​​with high mechanical and high electrical stress resistance requiring hardness, and due to low water absorbency, it is similar to the requirements of DiN 7735,teil 2 ISO 1642 due to glass fiber in machine parts. 40 Kv electrical value, difficult It is suitable for use in many areas due to mechanical and chip removal, +120 °C heat resistance, excellent electrical and heat insulation.

FIBER BOARD I WEDGES
(Made of Cloth HGW2082)

They are products known as “Fiber” in our market, which are manufactured by impregnating threads such as flush and canvas with Phenolic resins on top of each other by heating and impregnating them in presses and used for a long time.

This product (specific gravity:1,45g/cm3) and ISO 1642 DiN 7735 teil 2 has similarities. For this reason, it is generally used in mechanical processes, with electrical values ​​of 8kV to 20kV, resistant to electrical stress, due to water absorption, especially in some areas (such as ship shafts, barrels), in machine parts, mechanical and chip removal, +110 °C heat resistance, excellent It is suitable for use in many areas due to its high degree of electrical and heat insulation.

This material is available in 12×12,21×21 or 31×31 frequently woven varieties.

PERTINAX I SHEETS
(HP2061 MADE OF PAPER)

It is an extremely useful product known since ancient times, impregnated by pressing phenolic resin on paper, cardboard or waxed paper (specific weight: 1.45g/cm), this product, known as “PERTINAKS”, has similarities with DIN 7732 teil 2 and ISO 1642. carries. It is a material that can be used easily especially in electrical isolation areas due to its 15Kv electrical value and resistance to electrical stress. It is also suitable for use in many areas such as rectifiers and transformers, as it provides mechanical and chip removal, +115 °C heat resistance, excellent electrical and heat insulation.
